EV Charging Gun Comprehensive Testing System for Auto Parts Test Equipment | Charging Connector Safety & Performance Test Bench

Nama merek:	HeJin
Nomor Model:	HJ-APTE0312
Moq:	1 set
harga:	Negotiatable
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	10 set / bulan

Informasi Rinci

Deskripsi Produk

Rating & Ulasan

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate(cost additional)

Stasiun Uji:

2 stasiun

Ketinggian pengoperasian:

Tinggi soket kira-kira. 800 – 1000mm

Dimensi:

1000*800*1800mm

Berat:

300KG

Kemasan rincian:

kayu lapis

Menyoroti:

EV charging gun testing system

charging connector safety test bench

auto parts performance test equipment

Deskripsi Produk

EV Charging Gun Comprehensive Testing System

This comprehensive testing system provides manufacturers and laboratories with a reliable platform to verify the quality and compliance of EV charging connectors and related components. Engineered as professional auto parts test equipment, this intelligent platform integrates multiple test modules to simulate real charging conditions and ensure each charging gun performs safely and consistently throughout its lifecycle.

Key Features

Integrated Multi-Function Testing Platform
High Precision Electrical Measurement
Intelligent PLC Control System
Realistic Charging Simulation
Durable Mechanical Structure

Technical Specifications

Equipment Type	Charging Gun Comprehensive Testing System
Power Input	Single-phase AC 220V / 50Hz
Air Source Input	0.6 MPa
Control System	PLC + Industrial Computer
Barcode Identification	QR code / barcode scanning before testing
MES Integration	Can connect to MES system (optional)
CP/CC Resistance Test Range	1 – 5000 Ω
DC Gun CC1 / CC2 Resistance Test	0 – 5000 Ω
Resistance Accuracy	±1%
Thermistor Test Range	100 – 50000 Ω
Thermistor Accuracy	±2%
Electronic Lock Test Voltage	DC 12V drive voltage
Insulation Test Voltage	DC 100 – 1000V adjustable
Insulation Resistance Lower Limit	1 MΩ – 1 GΩ adjustable
Insulation Test Accuracy	±5%
Withstand Voltage Test Range	AC 0 – 5kV / DC 0 – 6kV

International Reference Standards

IEC 62196-1 – Plugs, socket-outlets, vehicle connectors and vehicle inlets for conductive charging of electric vehicles – General requirements
IEC 62196-2 – Dimensional compatibility and interchangeability requirements for AC charging
IEC 61851-1 – Electric vehicle conductive charging system – General requirements
ISO 16750-2 – Road vehicles environmental conditions and testing for electrical and electronic equipment
ISO 6469-3 – Electric road vehicles – Safety specifications for electrical systems

Applications

EV charging connector manufacturers
Automotive parts laboratories
Electric vehicle OEM testing departments
Research institutes focusing on electric mobility
Charging station equipment manufacturers

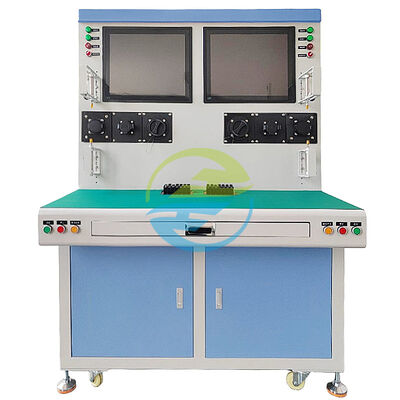

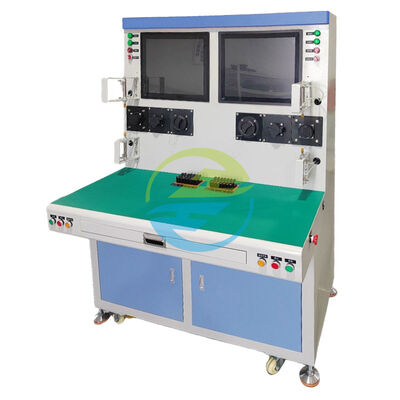

Product Image

Frequently Asked Questions

What types of EV charging connectors can this system test?

The system supports testing of various charging connectors including AC charging guns, DC fast charging connectors, and customized EV charging interfaces.

Can the testing parameters be customized?

Yes. Testing parameters such as current range, voltage range, and mechanical cycles can be customized based on your product specifications.

Is the system suitable for laboratory certification testing?

Yes. The system is designed in accordance with international testing standards and is suitable for product development, quality control, and certification laboratories.

Does the equipment support automated testing?

Yes. The PLC control system enables automated testing sequences, reducing manual operation and improving efficiency.

Do you provide installation and training?

Yes. We provide remote guidance, operation manuals, and professional technical training for customers.
