IPX8 Waterproof Pressure Environmental Test Chamber for Deep Water Immersion and Sealing Integrity Testing

Nama merek:	HeJin
Nomor Model:	HJ-EMTC-006
Moq:	1 SET
harga:	Negotiatable
Ketentuan Pembayaran:	L/C,T/T
Kemampuan Penyediaan:	10 set per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Calibration Certificate(Cost Additional)

Bahan:

SUS304#

Voltase:

AC220V 50Hz

Akurasi tekanan:

± 1% FS

Jenis Penyegelan:

Penyegelan tekanan multi-lapis

Standar uji:

IEC 60529 IPX8

Jaminan:

Satu tahun untuk masalah kualitas yang bukan disebabkan oleh kesalahan manusia

Kemasan rincian:

Kayu lapis

Menyoroti:

IPX8 waterproof test chamber

deep water immersion test chamber

sealing integrity testing chamber

Deskripsi Produk

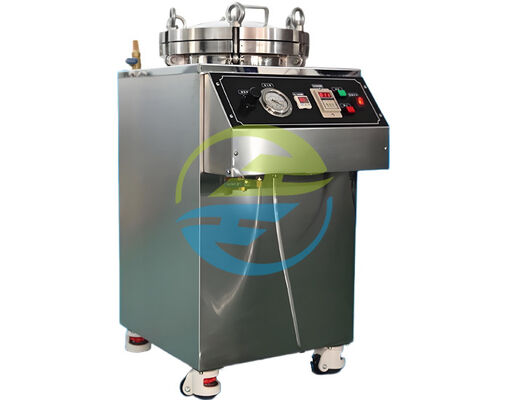

IPX8 Waterproof Pressure Environmental Test Chamber

The Hejin IPX8 pressure testing chamber simulates continuous immersion under specific water pressure conditions, verifying seal integrity, structural reliability, and long-term waterproof performance. Unlike standard immersion tanks, this environmental testing chamber applies controlled pressure to replicate real underwater environments—ideal for consumer electronics, automotive components, and industrial equipment.

Manufacturing Excellence

Every aspect of this testing chamber reflects Hejin's commitment to precision, stability, and practicality. The pressure system delivers smooth response, the chamber maintains structural rigidity under load, and test data demonstrates excellent repeatability—even during extended IPX8 testing cycles.

International Reference Standards

IEC 60529 – Degrees of Protection (IP Codes) - IPX8: Persistent immersion in water under manufacturer-specified conditions
GB/T 4208 – Degrees of Protection Provided by Enclosures (IP Codes)
IEC 60068-2-18 – Environmental Testing – Test R: Water Immersion Test Method

Applications & Typical Uses

Waterproof performance verification
Product sealing integrity testing
Deep water immersion simulation
Pre-certification IPX8 testing
Quality control and R&D validation

Technical Specifications

Test Items	Specific Parameters
Pressure Adjustment Method	Automatic Control
Control Accuracy	±0.002Mpa (Automatic)
Pressure Adjustment Range	0~1.0Mpa
Test Water Depth Range	0~100 meters
Maximum Ultimate Pressure	1.1Mpa
External Dimensions	460580920mm
Material	SUS304#
Tank Thickness	6mm
Voltage	AC220V 50Hz
Power	100W
Weight	100kg

Frequently Asked Questions

What is the difference between IPX7 and IPX8 testing?

IPX8 requires continuous immersion under specified pressure conditions, while IPX7 is limited to shallow, time-defined immersion.

Can pressure and test time be customized?

Yes. Both parameters are fully adjustable based on product requirements.

Is this chamber suitable for certification testing?

It is widely used for pre-certification and internal verification testing.

Can large or irregular products be tested?

Custom chamber sizes and fixtures are available.

Is training required to operate the machine?

Operation is straightforward, and guidance is provided.
