IEC61032 Test Finger 6 Probe Type 2 – Precision Safety Compliance Testing Device for Electrical Appliance & Enclosure Verification

Name: IEC61032 Test Finger 6 Probe Type 2 – Precision Safety Compliance Testing Device for Electrical Appliance & Enclosure Verification
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HT-I06
Availability: InStock

Nama merek:	HJ
Nomor Model:	HT-I06
Moq:	1 Set
harga:	Negotiatable
Ketentuan Pembayaran:	T/T,L/C
Kemampuan Penyediaan:	30 set/per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

calibration certificate (cost additional)

Nama Produk:

Uji Probe 2 HT-I06

Penggunaan:

Probe objek IEC 60529 (kode IP)

Kode penyelidikan:

2, Uji Probe Jari

Keterangan:

Bola: ∅ 12.5

Standar:

IEC 61032, IEC 60529-1, IEC 60335-1

Bahan:

bola baja + Pegangan Nilon

bola:

Ф12.5mm

Waktu Pimpin:

Dalam waktu yang sangat singkat

Kemasan rincian:

kotak kartun

Menyoroti:

IEC61032 test finger probe

electrical appliance safety tester

precision compliance testing device

Deskripsi Produk

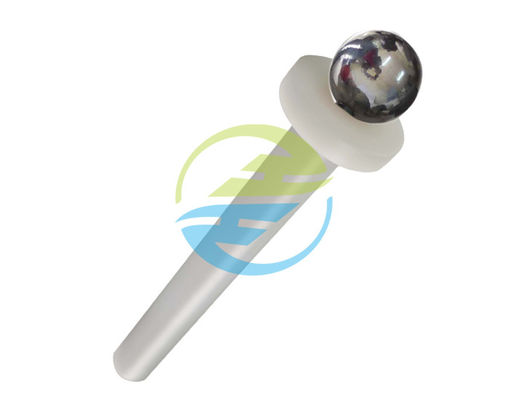

IEC61032 Test Finger 6 Probe Type 2 – Precision Safety Compliance Testing Device for Electrical Appliance & Enclosure Verification

Product introduction

The He Jin HT-I06 Test Finger Probe? It's built tough. We make it from strong stainless steel and stuff that doesn't conduct electricity,. It acts like a human finger so you can see if anyone could accidentally touch something shocking, moving, or pinch-y when they're using or fixing your stuff.

If you work in a lab, certify products, or make things, this probe is super important. It helps you check if your stuff meets IEC, EN, and UL safety rules.

Since He Jin builds these directly and works with other brands, we promise they're well-made, the right size, and last a long time. We check each one really carefully to make sure it fits the safety rules.

Standard:

IEC 61032 'Protection of persons and equipment by enclosures – Probes for verification’ figure 6 test probe 2.

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP2X

IEC 60335-1 'Household and similar electrical appliances – Safety – Part 1: General requirements’

Product Applications

This probe is widely used in:

Safety testing of electrical and electronic equipment enclosures

Safety testing of household appliances (such as fans, electric heaters, vacuum cleaners, etc.)

Verification of protection levels for industrial automation equipment

Verification of electric shock protection in laboratories and testing institutions

IP protection level testing for various products (especially protection against human contact)

Parameter:

Model	HT-I06	HT-I06T
Name	Test probe 2 Test Finger Probe	Test probe 2 steel ball with force
Steel ball diameter	SФ12.5+0.2 0	SФ12.5+0.2 0
Force	----	With force of 30N
Applied standard	IEC61032-1	IEC60529-1

Product Specification Diagram:

IEC61032 Test Finger 6 Probe Type 2 – Precision Safety Compliance Testing Device for Electrical Appliance & Enclosure Verification 0

Product Detail Diagram:

IEC61032 Test Finger 6 Probe Type 2 – Precision Safety Compliance Testing Device for Electrical Appliance & Enclosure Verification 1

FAQ:

1. How fast can I get a quote?

We try to get back to you in six hours. If it's super urgent, call or email us so we can put you at the front.

2. How long does production take?

Well, it depends on how much you order and what it is. Usually, it's about seven work days after things are set.

3. What ways can I pay?

We take EXW, FOB, DAP, CIF, and others. Pick what works best for you!

4. How much for shipping, and how long will it take?

That changes with the size of your order, how it ships (boat, plane, or express), and where it needs to go. If you can give us the details, we can figure out the costs.
